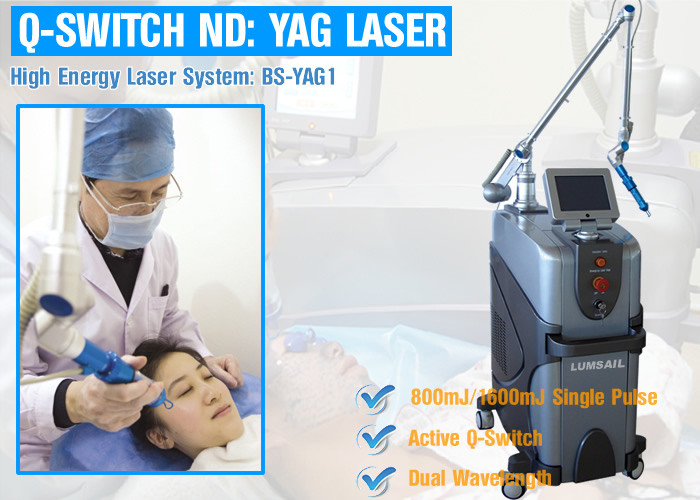

Powerful Q-switched laser treatment BS-YAG1 For tattoo removal
BS-YAG1 powerful Q-switch Nd:Yag laser equipment is sourced by ND:YAG medical laser. With multiple levels amplifying, the laser beam carries high energy which can be used in many fields as tatto removing, freckle removing, etc. The affluent energy design ensures the energy density and treatment effect, at the same time many improvements are integrated to eliminate as far as possible the damage caused by laser to the people under treatment, and surrounding environment.
Features:
Dual wavelength Nd:Yag laser:1064nm and 532nm
Support high energy Q-switch output mode, with max output at 800m joules,and pulse width down to 6ns
Support long pulsed output mode for skin rejuvenation and wrinkle removal
Electro-Optic Q-Switched YAG Laser source, with very short pulse width
Optical beam transmission:7 joints arm light conducting arm and high transmission efficiency
Automatically adjust the laser fluence according light spot size settings
Advantage:
Remove pigment lesions on dermis
800mJ/1600mJ Single Pulse
1064/532nm wavelength
Electro-Optic Q--Switched
High energy output with adjustable spot size
Technical Parameter:
Powerful Q-switched laser treatment BS-YAG1 For tattoo removal treatment
| Type | EO Q-switch Nd:YAG laser |
| Spectra wavelength | Double wavelength 1064nm, 532nm |
| Energy | Max.800 mJ at 1064nm;Max.400mJ at 532nm |
| Laser Pulse width | Minimal 6ns(Q-switch mode);300 ns(Long pulsed mode) |
| Repeat Frequency | 1-10Hz |
| Spot Size | Diameter 2-7 adjustable on handpiece; Energy density displays on LCD simultaneously |
| Aiming Beam | Red Diode Laser |
| Laser Delivery | 7 joints articulated light guiding arm,with power density adjustable pole |
| Cooling system | Close loop self-contained Water-air cooling |
| Aiming Beam | Diode laser 650nm(RED) |
| Weight | 140kg |
| Dimension | 700*420*505mm |
| Working Temperature | 15-27°C |
| Environment Humidity | <=80% |
| Power | AC 220V/10A,50/60Hz |
Please feel free to contact us! We are at your service at any time!
